Engineered Pressure Systems for Demanding Applications

ESS custom pressure vessels and piping are built for high-integrity performance in critical industrial environments. These systems meet stringent specifications for pressure, temperature, and corrosion resistance. Built to the most rigorous engineering and safety standards, ESS pressure systems are ideal for refineries, chemical plants, water treatment, mining, energy, and specialty industrial processes.

Key Features:

• Vertical or horizontal vessels up to 10' Ø x 50' L/H
• ASME Sec VIII Div 1 & 2, B31.3/B31.1, CRN, NACE, and PED compliant
• Materials: CS, SS316, 2205 Duplex, AL6XN, Titanium, Hastelloy, Alloy 600/625
• Full NDE options: RT, UT, MT, PT, PMI
• Optional: custom closure and nozzles, internal linings, ladders, coatings, insulation


Engineered for safe, scalable, and long-lasting performance in high-pressure and corrosive service environments.

Engineered Performance for High Volume Applications
ESS high flow filter housings are purpose-built to handle large volumes and high flow rates with efficiency and reliability. Available in both horizontal and vertical designs, these housings are optimized for compatibility with high flow cartridges and engineered to meet the demands of critical process applications. With robust construction, precise element alignment, and flexible configuration options, ESS high flow housings deliver superior performance in standalone or multi-stage filtration systems.

Key Features:
• Horizontal and vertical orientations to suit layout and maintenance needs
• Custom-engineered for flow rate, viscosity, and particulate load
• Supports high flow cartridge styles in 20", 40", and 60" lengths, including single-open-end and O-ring sealed variants
• Standard and high pressure ratings up to 3,000 PSI
• Closure styles include swing bolt, quick T-bolt, davit-assisted, and flanged designs
• ASME Code Stamp, CRN registration, and NACE compliance available
• Material options: Carbon Steel, 300 Series Stainless, 2205 Duplex, AL6XN, Titanium, Alloy 600, Hastelloy
• Optional NDT testing (RT, PT, MT, UT, PMI) and ASME Sec VIII Div 1 or Div 2 compliance

Designed for reliable, scalable, and safe operation in high-demand process environments.

 ESS Cartridge Filter Housings — Reliable Filtration for Demanding Industrial Applications

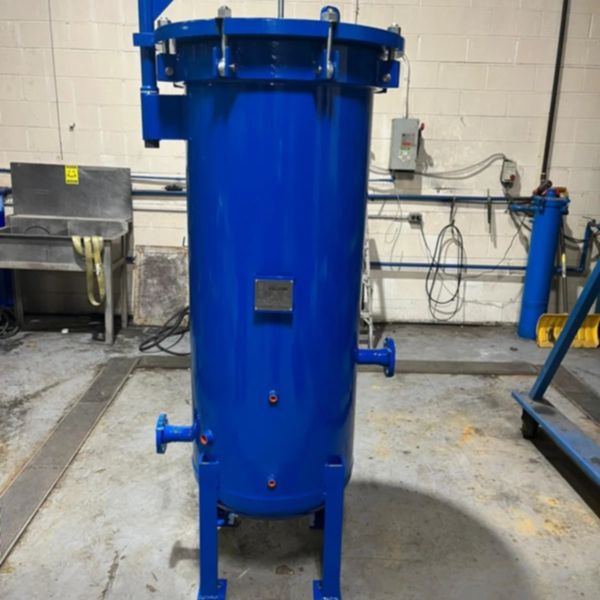

ESS cartridge housings are available in vertical and horizontal configurations, custom-designed with precisely machined internal components for secure cartridge support. Element and vessel sizing is engineered based on fluid properties and application requirements. Our housings can be combined seamlessly with other filter styles, such as Activated Carbon Bed filters, to provide complete multi-stage filtration solutions.

Key Features:
• Vertical or horizontal configurations
• Element and vessel sizing tailored to fluid properties
• Supports cartridge styles including DOE, SOE-222, SOE-226, and Code 6
• Pressure ratings up to 3,000 PSI
• Closure options: V-clamp, quick T-bolt, davit-assisted, and flanged closures
• ASME Code Stamp, CRN, and NACE compliance available
• Fabricated from Carbon Steel, 300 Series Stainless, 2205 Duplex, AL6XN, Titanium, Alloy 600, Hastelloy
• Optional NDT testing (RT, MT, PT, UT, PMI) and ASME Sec VIII Div 1 compliance

Designed for reliable, safe, and customizable filtration.

Reliable Filtration for Diverse Industrial Applications

ESS provides vertical bag filter housings for up to 24 standard-size bags, designed for high performance in demanding industrial environments. Turnkey multivessel systems are available with integrated piping, valves, and instrumentation.

Key Features:

• Vertical housings with flexible inlet/outlet options:
  • Side In / Side Out
  • Side In / Bottom Out
  • Bottom In / Bottom Out
• Self-sealing plate design to prevent bypass
• Closure options: V-clamp, quick T-bolt, and davit-assisted
• Gas spring-assisted lid lifting for easy maintenance
• Flow rates from 20 - 150 GPM per L2 housing
• Pressure ratings up to 4,000 PSI
• ASME Code Stamp, CRN, and NACE compliance
  Materials: Carbon Steel, 300 Series SS, 2205 Duplex, AL6XN, Titanium, Alloy 600, Hastelloy
  Optional NDT: RT, MT, PT, UT, PMI, LPI, Hardness, PWHT, etc.


Engineered for Cost Effective filtration solutions.

Engineered Filtration for Gas.

ESS gas filters and coalescers are designed to remove particulates, aerosols, and liquids from natural gas, compressed air, and process gases. Built for high efficiency, low pressure drop, and critical equipment protection, these systems are ideal for upstream, midstream, and industrial applications.

Key Features

• Vertical and horizontal configurations for pressure vessels
• Custom-designed for flow rate, pressure, particle size, and liquid load
• Element styles: pleated, depth, coalescing, and separator cartridges, vane packs, demister pads
• Pressure ratings up to 3,000 PSI
• ASME Sec VIII Div 1 or 2, CRN, and NACE compliant
• Materials: Carbon Steel, SS316, Duplex, Hastelloy, and more
• NDE options: RT, UT, PT, MT, PMI


Reliable gas filtration and separation for pipelines, compressor stations, fuel systems, and chemical plants.

Engineered Adsorption for Air and Liquid Treatment

ESS Carbon Canisters and Bed Systems are designed for high-efficiency removal of VOCs, hydrocarbons, and dissolved organics from gas and liquid streams. Available in modular canister and large-scale bed configurations, these systems are optimized for industrial process and emissions treatment.

With durable construction, media-specific sizing, and flexible installation options, ESS carbon systems provide reliable, scalable performance across a wide range of applications.

Key Features:

• Gas-phase and liquid-phase designs for process purification or emissions control
• Modular canisters and custom bed vessels sized for flow rate, EBCT, and contaminant load
• Supports standard canister sizes with 22" height
• Carbon Bed with 12"–48" OD configurations
• Compatible with bituminous, coconut shell, catalytic, or specialty activated carbons
• Construction materials include Carbon Steel, 300 Series Stainless, FRP, or HDPE-lined options
• ASME Code, CRN registration, and NACE compliance available
•  Optional features: drain ports, sample ports, media fill/drain access, and mobile skid

Built for safe, effective, and continuous operation in industrial air and water treatment systems.
